Description

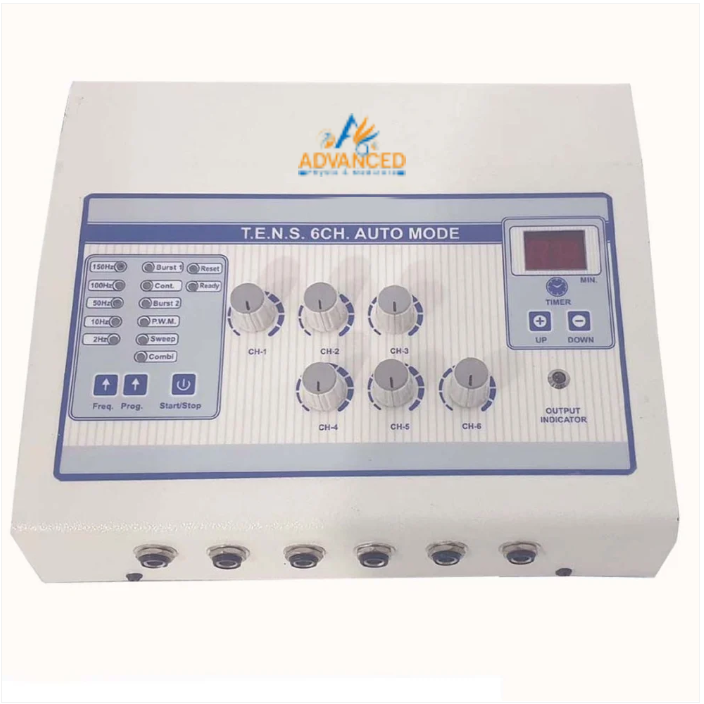

The Advanced Physio Medicare Digital 6 Channel TENS Machine with Auto Mode is a professional-grade electrotherapy unit designed for physiotherapy and rehabilitation applications. It offers six independent output channels and multiple selectable pulse modes, providing flexibility for different treatment protocols.

The digital display and 0–60 minute timer make operation simple and convenient. The unit supports Continuous, Burst, PWM-C, PWM-I, Surge, and Sweep modes, along with selectable pulse frequencies from 2 Hz to 150 Hz.

Key Features

• 6 Independent Output Channels
• Digital Display
• 0–60 Minute Digital Timer
• Multiple Automatic & Manual Pulse Modes
• Continuous, Burst, PWM-C, PWM-I, Surge & Sweep
• Selectable Frequency: 2, 20, 40, 80, 120 & 150 Hz
• Biphasic Rectangular Balanced Waveform
• Adjustable Pulse Amplitude
• Suitable for Physiotherapy & Rehabilitation

Technical Specifications

• Display: Digital
• Pulse Modes: Continuous, Burst, PWM-C, PWM-I, Surge & Sweep
• Timer: 0–60 Minutes
• Waveform: Biphasic Rectangular Balanced Wave
• Pulse Amplitude: 0–80 mA/Channel
• Pulse Frequency: 2, 20, 40, 80, 120 & 150 Hz
• Pulse Width: 150 μs (except PWM-C & PWM-I)
• Output: Six Independent Outputs
• Power Supply: 90–240 V AC, 50/60 Hz, SMPS
• Fuse: 1 AMP

Standard Accessories

• 1 × Main Cord
• 6 × Connecting Wires
• 12 × Rubber Electrodes
• 1 × Set of Straps
• Carry Bag
• Gel Bottle
