Description

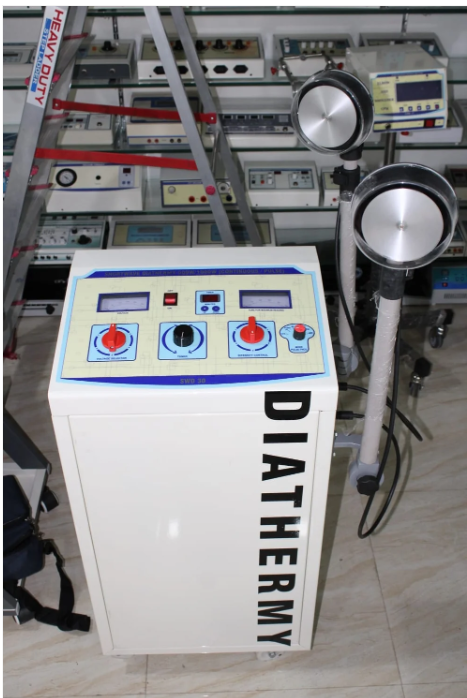

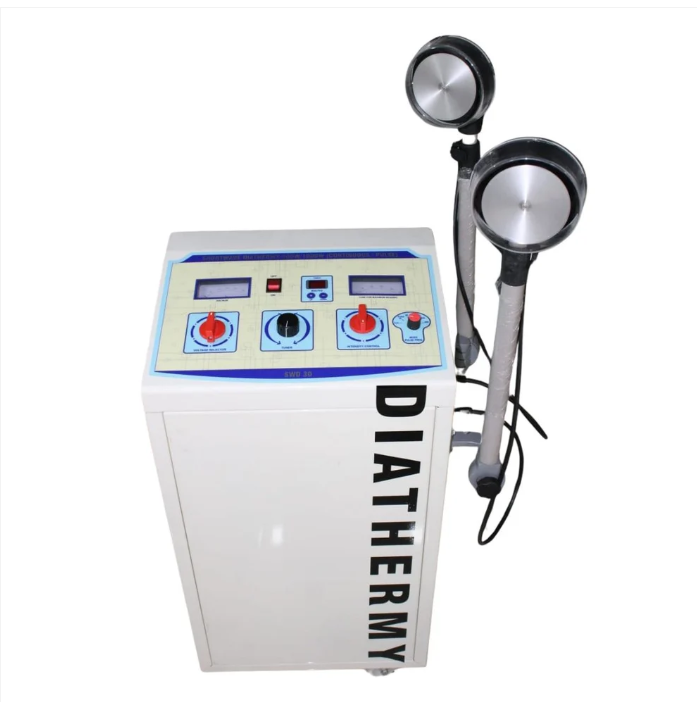

Shortwave Diathermy 500W with Disk Electrode – Floor Model by Advanced Physio Medicare is a professional-grade physiotherapy machine designed for clinical and rehabilitation environments. Its floor-standing design provides convenient positioning and movement within a physiotherapy treatment area.
The system delivers 500W continuous RF output at 27.12 MHz and uses an 11-meter wavelength. A programmable digital timer from 1 to 99 minutes allows physiotherapy professionals to set treatment duration according to their clinical protocol.
Applications
Shortwave Diathermy (SWD) may be used in physiotherapy protocols for:
- Joint stiffness
- Muscle spasm
- Musculoskeletal discomfort
- Ligament sprains and strains
- Supporting increased local circulation
- Supporting relaxation of soft tissues
Key Features
- 500W Continuous Output
- Disk Electrode
- Floor Model Design
- 27.12 MHz RF Frequency
- 11 Meter Wavelength
- Digital Programmable Timer
- Timer Range: 1–99 Minutes
- Output intensity display
- Filament voltage display
- Professional clinical construction
Technical Specifications
| Specification | Details |
|---|---|
| Product | Shortwave Diathermy with Disk Electrode |
| Model Type | Floor Model |
| Output | 500W Continuous |
| RF Frequency | 27.12 MHz |
| Wavelength | 11 Meter |
| Operating Voltage | 220V AC, 50Hz |
| Maximum Absorption | 800W |
| Fuse | 6 Amp |
| Timer | Digital, 1–99 Minutes Programmable |
| Display | Filament Voltage VAC & Output Intensity mA |
| Dimensions (L × H × D) | 475 × 905 × 370 mm |
| Weight | Approx. 44.7 kg |
| Room Temperature | 10°C–40°C |
| Moisture/Humidity | 10%–80% |
