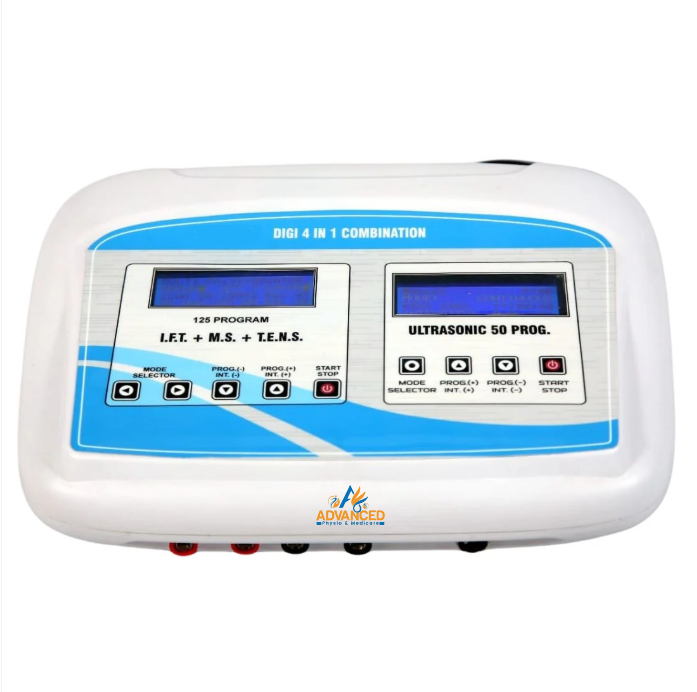

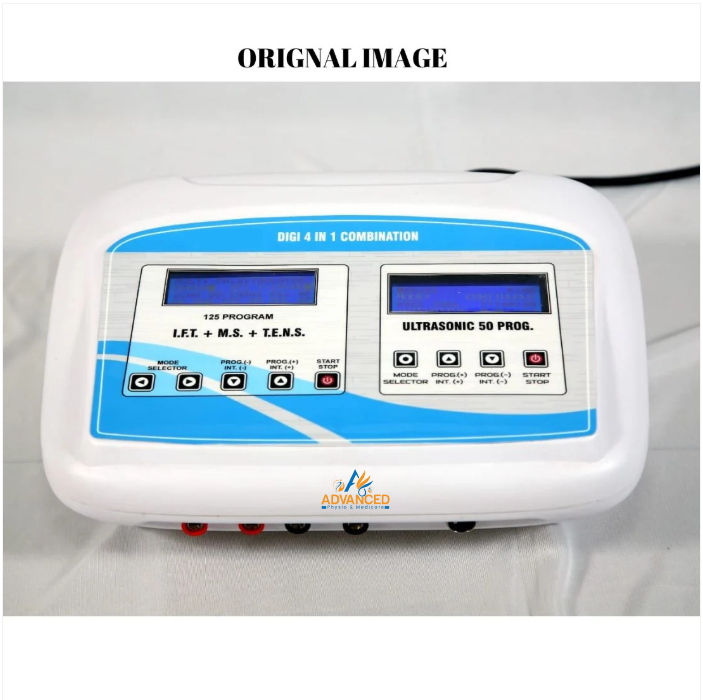

The Advanced Physio Medicare AMP-03DCM15-50 4-in-1 Physiotherapy Combo Machine is a digital computerized electrotherapy system designed for professional physiotherapy, rehabilitation, clinical, and hospital applications. It combines IFT, TENS, Muscle Stimulation, and 1 MHz Ultrasound Therapy in a single compact table-top unit.

The electrotherapy section provides 125 preset programs—70 for IFT, 30 for TENS, and 25 for MS—along with manual mode for IFT. The ultrasound section includes 50 preset programs, Continuous and Pulse modes, and adjustable pulse ratios.

With an LCD display, soft-touch buttons, up to 99-minute timer, and four electrotherapy channels, the machine provides convenient treatment control and can support treatment for two patients simultaneously.

Key Features

• 4-in-1 Physiotherapy Combo Machine
• IFT + TENS + MS + Ultrasound
• 125 Electrotherapy Programs
• 50 Ultrasound Programs
• 1 MHz Ultrasound Frequency
• 4 Electrotherapy Channels
• Two-Patient Simultaneous Use
• LCD Display
• Soft-Touch Buttons
• Manual IFT Mode
• Timer up to 99 Minutes
• Compact Table-Top Design

Technical Specifications

IFT + TENS + MS

• Model: Digital Computerized
• Channels: 4
• Programs: 125
  • IFT: 70 Programs
  • TENS: 30 Programs
  • MS: 25 Programs
• IFT Modes: 4 Pole, 4 Pole Vector, 2 Pole
• TENS Modes: Burst, Continuous, Combi, Burst Deep, Burst Medium
• MS Modes: Interrupted Galvanic, Surge Faradic, SF Long
• Base Frequency: Up to 150 Hz
• Display: LCD
• Timer: Up to 99 Minutes
• Output: Constant Current (CC)
• Operating Voltage: 220 V

Ultrasound

• Frequency: 1 MHz
• Programs: 50
• Therapy Modes: Continuous & Pulse
• Pulse Ratios: 1:1, 1:3, 1:5, 1:7, 1:9
• Display: LCD
• Timer: Up to 99 Minutes
• Output Intensity: Up to 3.5 W/cm² Continuous / 2.5 W/cm² Pulse
• Operating Voltage: 220 V

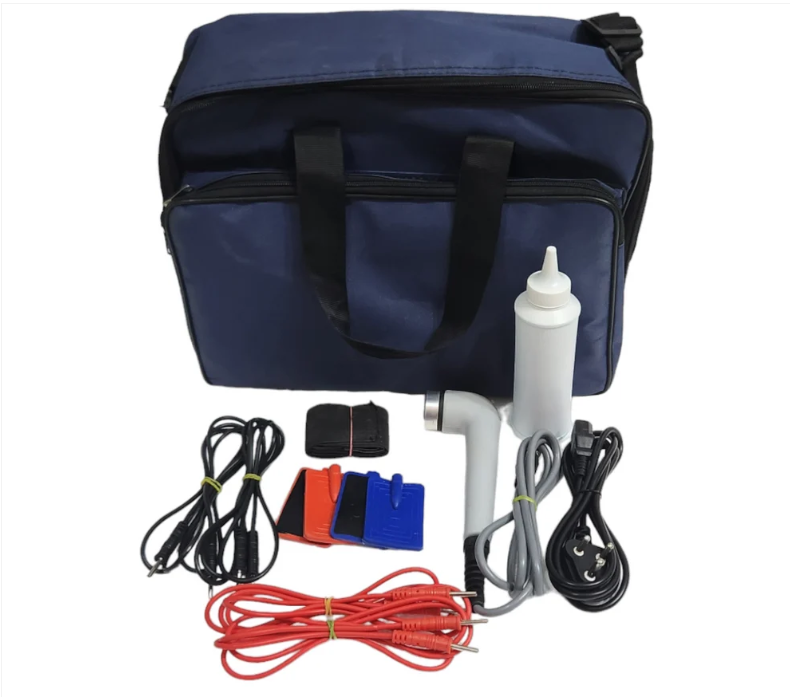

Standard Accessories

• 2 × Red Wires
• 2 × Black Wires
• 4 × Rectangular Rubber Electrodes
• 1 × 1 MHz Ultrasound Head & Cable
• 1 × Velcro Strap Set
• 1 × Main Cord
• 1 × Ultrasound Gel Bottle (250 ml)
