Description

The Advanced Physio Medicare 5 in 1 Physiotherapy Combo Machine is a computerized electrotherapy system designed for multiple physiotherapy applications. It combines Interferential Therapy (IFT), TENS, Faradic and Galvanic currents, 1 MHz Ultrasound, and Deep Heat Therapy in a single machine.

The electrotherapy section features 4 channels, 50 digital programs, soft-touch operation, adjustable frequency, and a timer up to 99 minutes. IFT therapy supports 4P, 4PV, and 2P modes, with a carrier frequency of 2–4 kHz and base frequency up to 150 Hz.

The integrated 1 MHz Ultrasound Therapy Unit provides Continuous and Pulsed operation with selectable pulse ratios and digital timer control. The Deep Heat Therapy section includes 2 pads for convenient treatment applications.

Key Features

• 5-in-1 Physiotherapy Combo System
• IFT + MS + TENS + Ultrasound + Deep Heat
• 50 Digital Programs
• 4-Channel Electrotherapy
• Soft-Touch Controls
• LCD/Digital Display
• Timer up to 99 Minutes
• 1 MHz Ultrasound
• Continuous & Pulsed Ultrasound Modes
• Deep Heat Therapy with 2 Pads
• Compact Professional Design
• Suitable for Clinics & Hospitals

Technical Specifications

• Input Supply: 220 V AC, 50 Hz
• Electrotherapy Channels: 4
• Programs: 50
• Therapy Modes: 4P, 4PV, 2P
• Carrier Frequency: 2–4 kHz
• Base Frequency: 0–150 Hz
• Sweep: 0–100 Hz
• Output Current: 0–100 mA
• Timer: 0–99 Minutes
• Weight: Approx. 4 kg
• Ultrasound Frequency: 1 MHz
• Ultrasound Power Density: 2.2 W/cm²
• Pulse Ratios: 1:1, 1:3, 1:5, 1:7, 1:9
• Ultrasound Timer: 0–99 Minutes

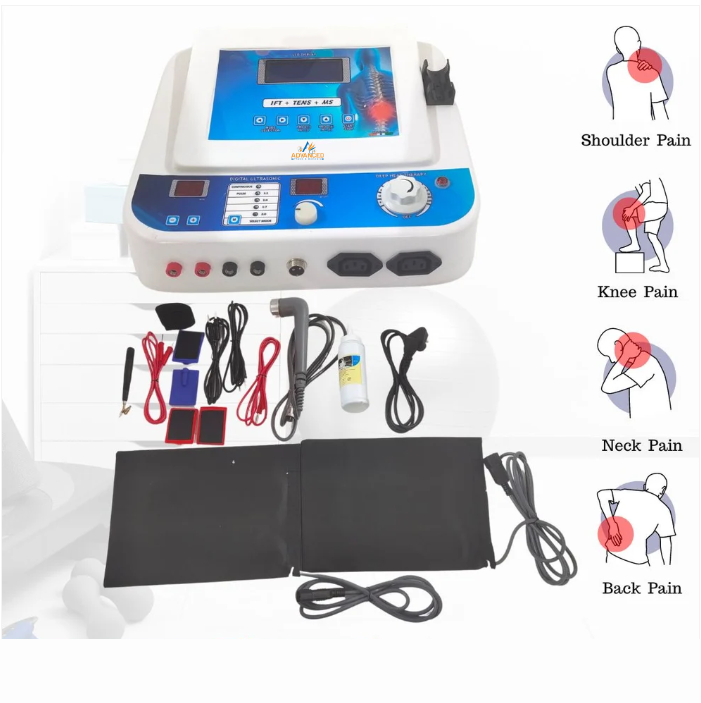

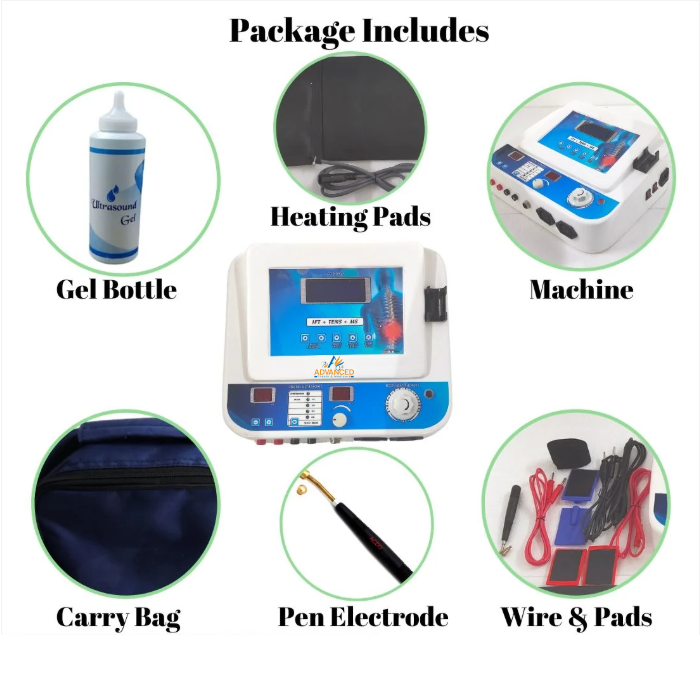

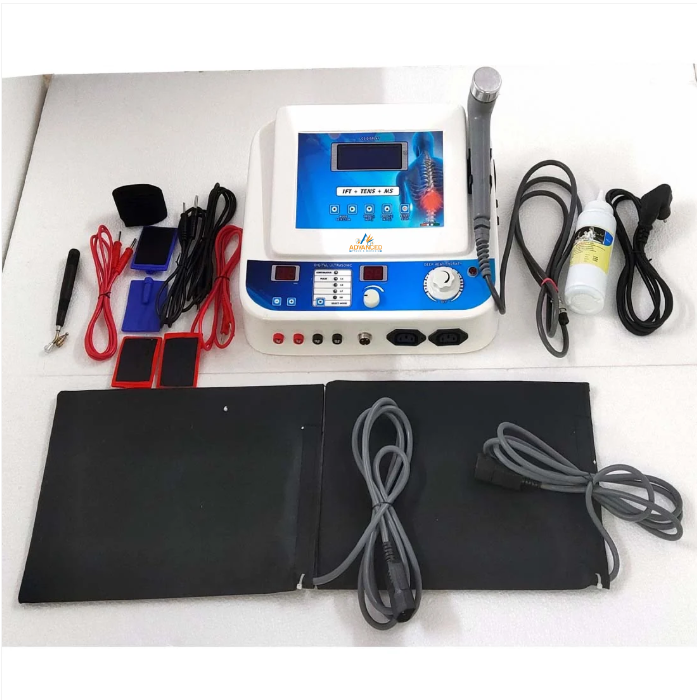

Standard Accessories

• Connecting Wire
• 1 MHz Ultrasound Head
• 2 Deep Heat Therapy Pads
• Main Cord
• Other standard therapy accessories
